EINSTAR, an affordable handheld 3D scanner, makes high-quality 3D data available to everyone.

In the standard package you will find a handheld 3D scanner with Exstar software, and a lightweight carring case which includes a series of accessories: a silicone case, introductory user guide, positioning markers, cloth to wipe the lens, a carring strap, power supply and USB cable.

Variety Applications
Support multiple data format outputs, compatible with 3D printers and 3D design softwares.

High Quality Data
Collect high density point cloud data fast and easily with point distance up to 0.1 mm.

High Color Fidelity
Benefit from built-in RGB color camera. 3D data with authentic colors.

Detail-oriented Enhancement Technology
Built-in detail enhancement technology optimizes the point cloud for complete data acquisition.

Streamlined User Experience
Smooth and fast, scanning speed up to 14 FPS.

• Smart tracking performance
• Automatic alignment
• Intelligent algorithm

Stable Outdoor Scanning

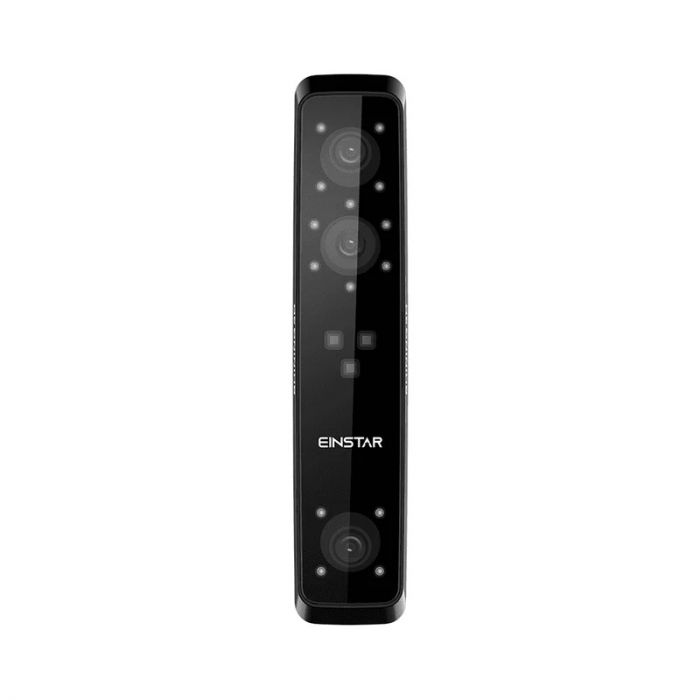

Equipped with 3 Infrared VCSEL Projectors, 2 Stereo Depth Cameras and 1 RGB Camera, Einstar can capture clear scan data and generate stable outputs outdoors. Provide a flexible working distance for small and large objects.

Extremely Easy to Use

• Ergonomic design
• Only one USB cable for data transmission and power
• Clear and elegant workflow for scanning and post processing
• Easy to setup, plug and play

Comfortable for Eyes, Easy to Scan Hair

• No projector light during scanning process.
• Comfortable and safe for eyes.
• Turning on "Hair Mode" to get sufficient hair data for human scan and improve the whole data completeness.

TECHNICAL SPECIFICATIONS

• Light Source: Infrared VCSEL structured light*
• Point Distance: 0.1 mm ~ 3 mm
• Effective Working Distance: 160 mm ~ 1400 mm
• Optimal Working Distance: 400 mm
• FOV (under optimal work distance): 434 mm x 379 mm
• Scan Rate: up to 14FPS/S
• Alignment: Texture/ Feature/ Hybrid Alignment/ Global Markers*
• Full Color Scanning: Yes
• Outdoor Scanning: Yes
• Output Formats : OBJ, STL, PLY, ASC, 3MF, P3
• Scanner weight: 0.5 kg
• Scanner dimension: 220 mm x 46 mm x 55 mm
• Carrying case dimension: 245 mm x 245 mm x 90 mm
• Interface: USB 2.0 or above
• Recommended Computer: CPU: Intel Core i7-11800H or above RAM: 32GB or above Graphics card: NVIDIA GTX 1060 or above VRAM: 6GB or above
• Supported OS: Windows 10/11 64-bit

*Einstar infrared light source, certificated as Class 1 laser product, is safe under all conditions of normal use.

*Global Markers alignment is only available in Object Scan Mode
